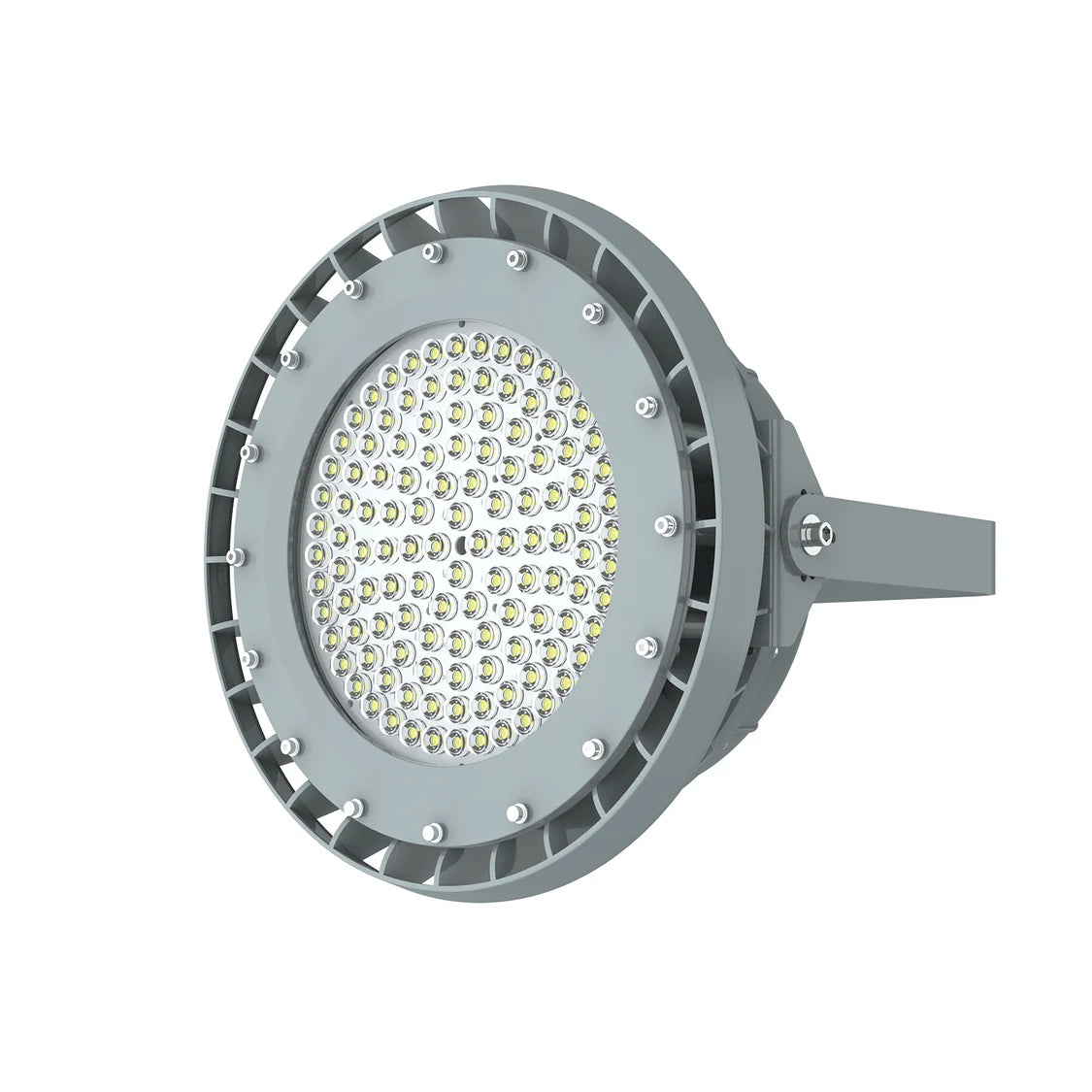

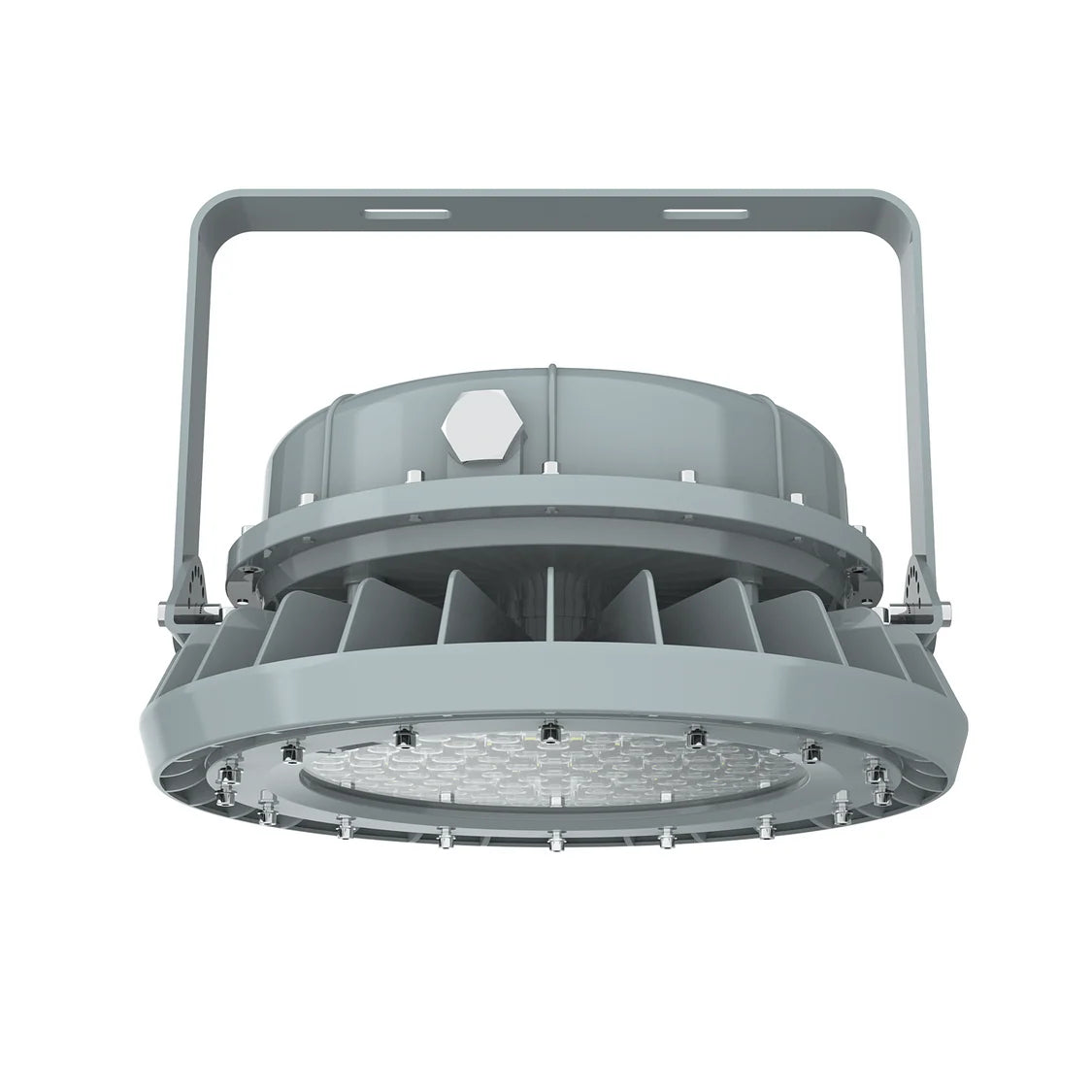

The LEDSION 150W Explosion-Proof UFO High Bay Light is engineered for reliable, high-output illumination in Class I Division 2 hazardous locations where flammable gases or vapors may be present under abnormal conditions. Delivering powerful 5000K daylight illumination, this fixture ensures excellent visibility, safety, and energy efficiency in demanding industrial environments.
Built with a robust aluminum housing, flat tempered glass lens, and a high-reliability Meanwell driver, this explosion-proof high bay offers long service life and stable performance. The 120° wide beam angle provides uniform light distribution, while 0–10V dimming allows precise lighting control. Featuring bracket mounting and a 3/4″ NPT cable entry, installation is straightforward and secure for industrial applications.
Key Features
- Power: 150W LED explosion-proof high bay
- Color Temperature: 5000K daylight white
- Input Voltage: AC 100–277V, 50/60Hz
- Dimming: 0–10V dimmable driver
- Beam Angle: 120° wide distribution
- Driver: Premium Meanwell LED driver
- Lens: Impact-resistant flat (plane) glass

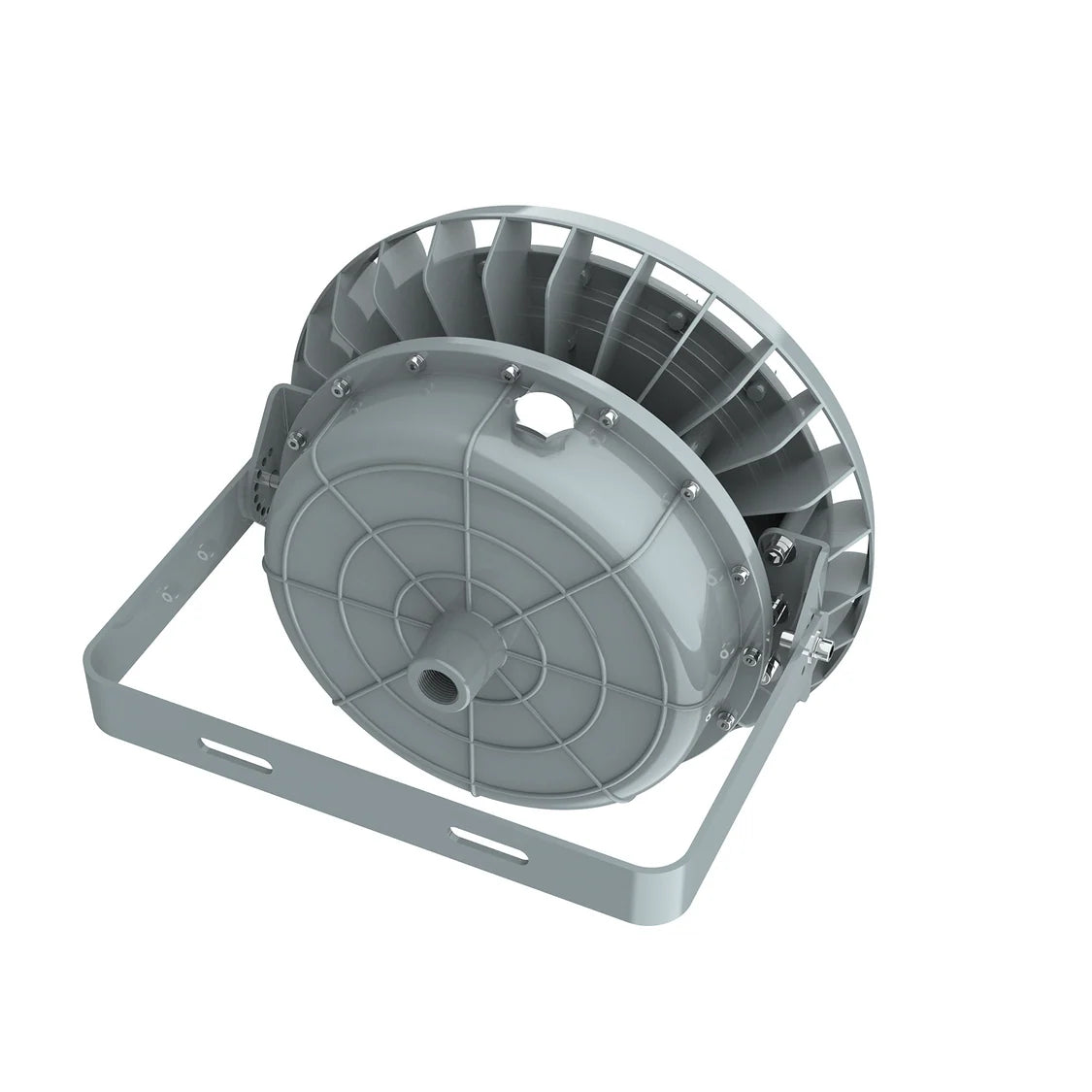

- Mounting: Heavy-duty bracket installation
- Cable Entry: 3/4″ NPT conduit entry
- Fixture Diameter: 370 mm
- Construction: Sealed, corrosion-resistant housing for hazardous locations
Certifications & Compliance
- ETL Certified
- UL Standards: UL1598 / UL1598A / UL844 / UL924 / ABS
Hazardous Location Ratings
- Class I, Division 2, Groups A, B, C, D
- Class II, Division 1, Groups E, F, G
- Class II, Division 2, Groups F, G
- Class III
Applications
- Oil & gas facilities and refineries
- Chemical and petrochemical plants
- Manufacturing and processing facilities
- Grain handling and dust-hazard environments
- Warehouses with hazardous classifications
- Marine and offshore industrial areas
- Pump rooms, compressor rooms, and utility spaces
