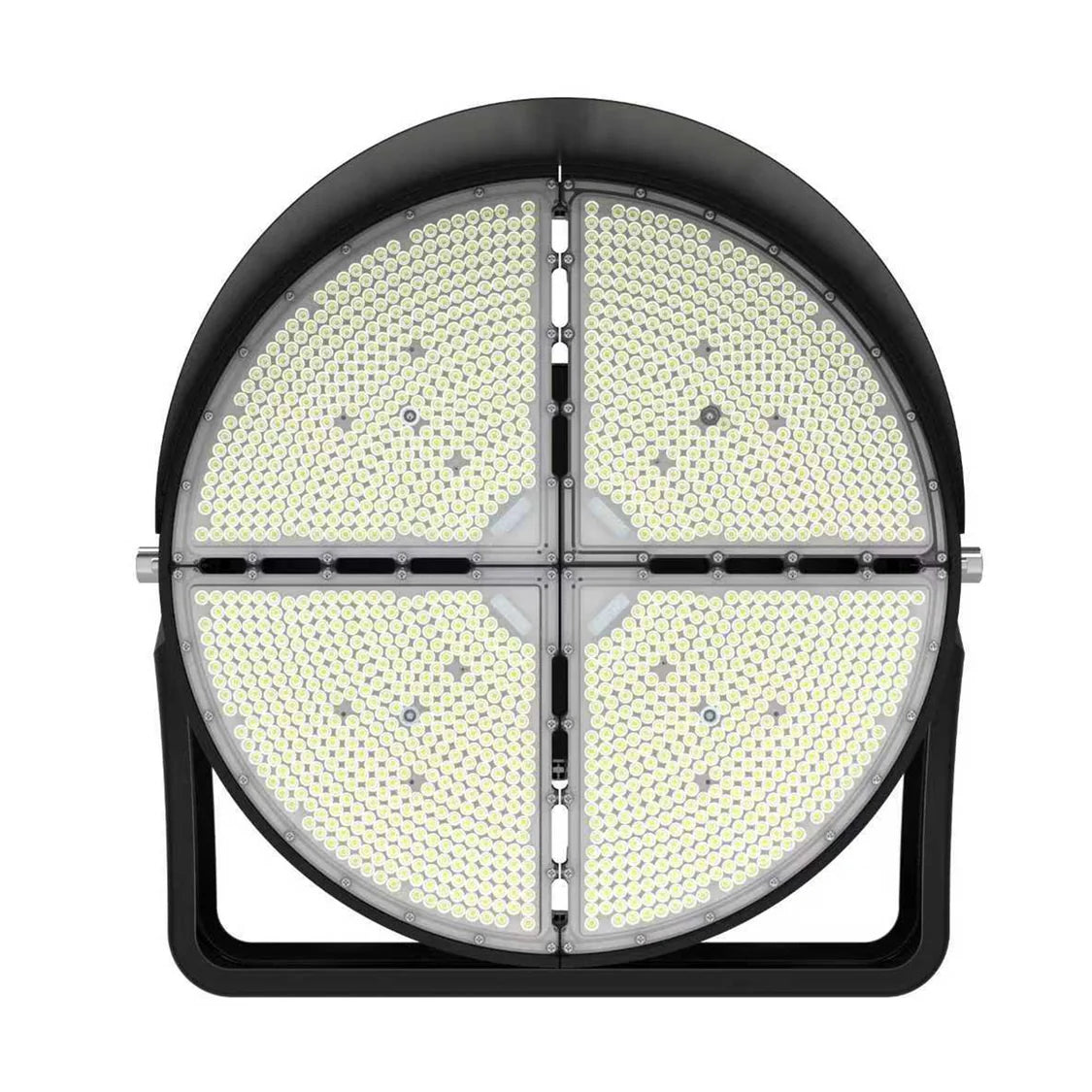

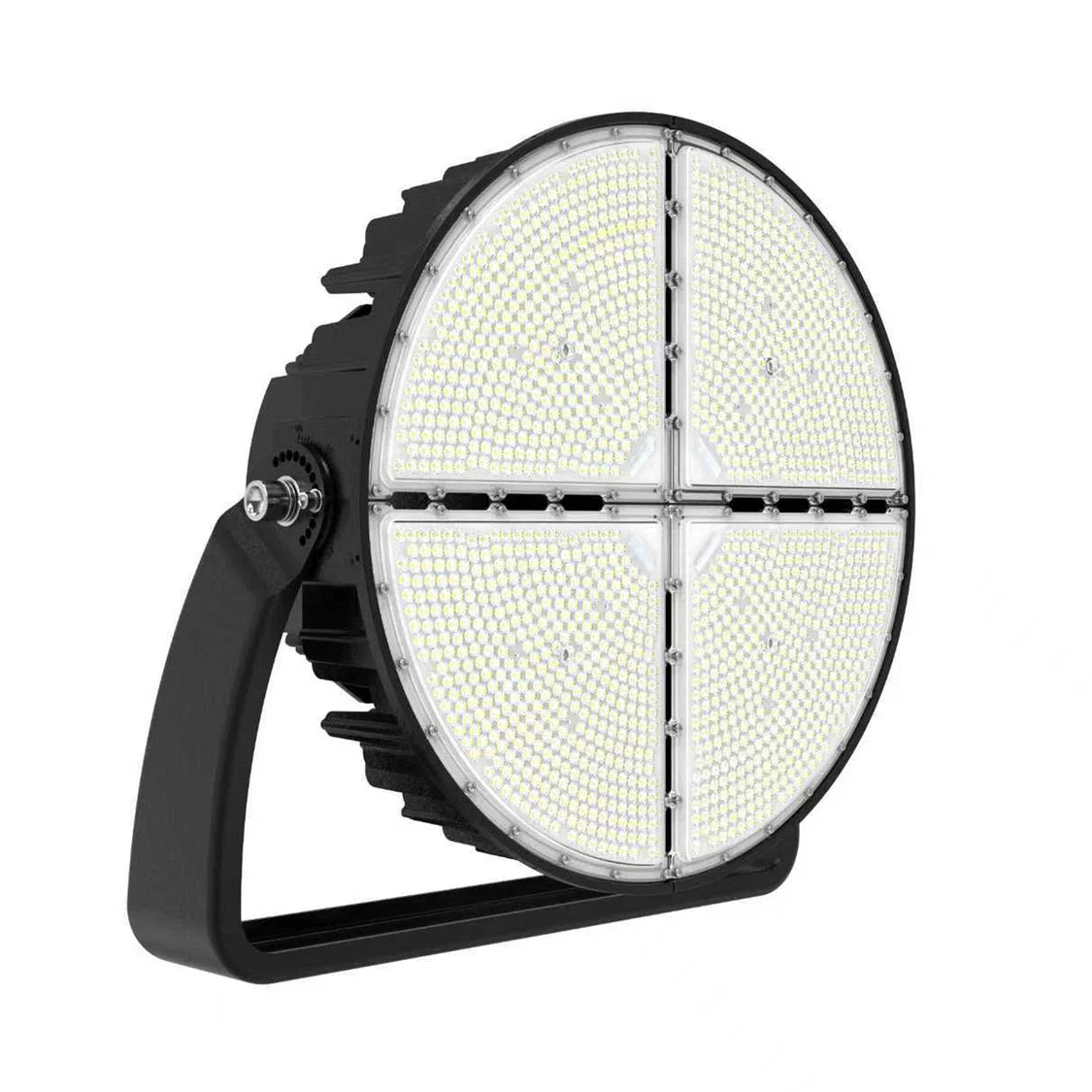

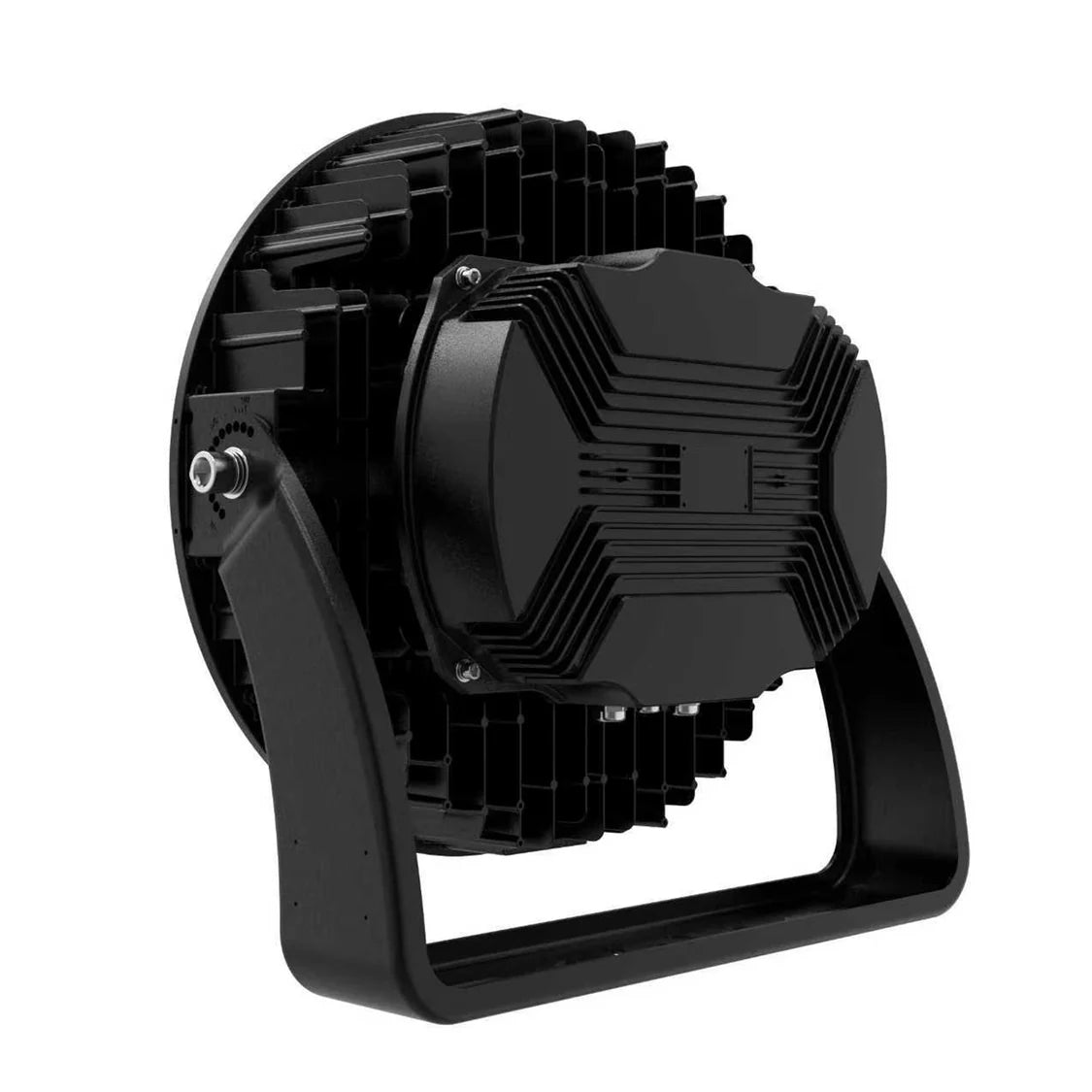

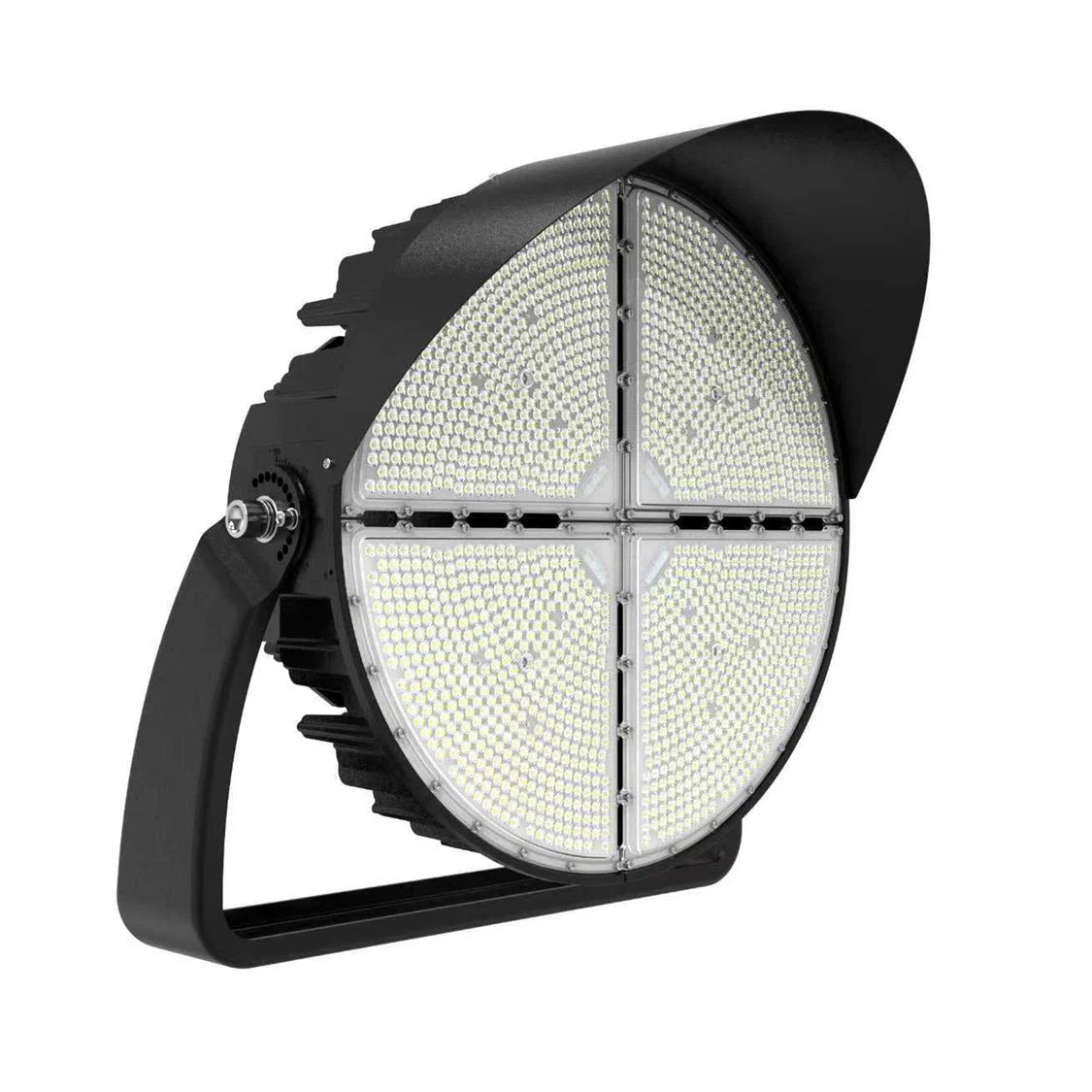

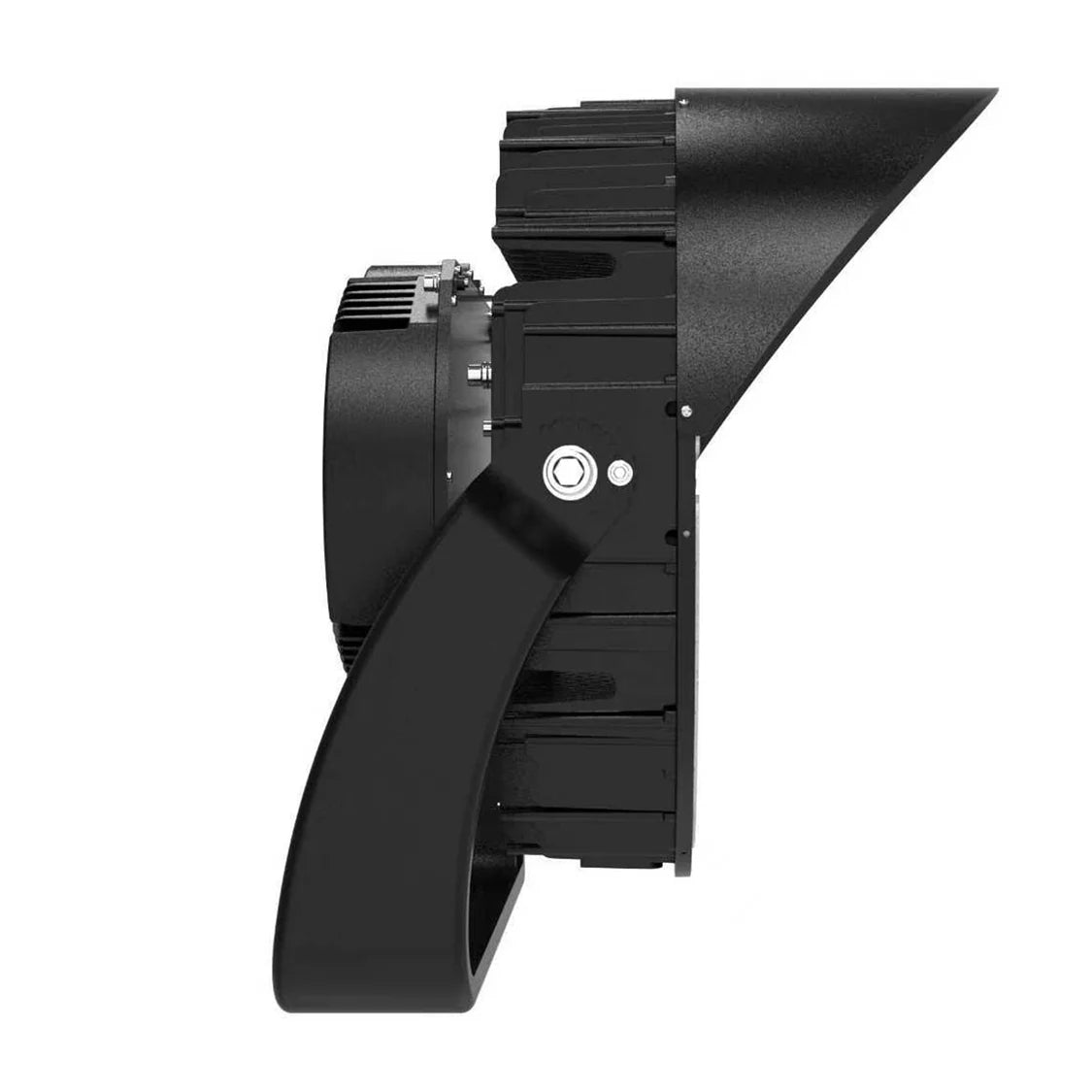

ANGLE select 800/1000/1200W LED Stadium Light gives you full on-site control in one powerful fixture. Instantly select wattage (800W/1000W/1200W) and beam angle (30°/45°/60°) with simple switches — no extra SKUs or guesswork.

Delivering up to 186,000 LM at 155 LM/W, it features a die-cast aluminum housing, advanced heat dissipation, anti-glare optics, and rugged weather-tight construction built to handle the harshest outdoor conditions. 200–480V input, DLC & UL listed, and backed by a 5-year warranty. The ultimate high-performance solution for stadiums, sports fields, and large-area lighting.

Specifications

• Model: SPL-1200/1000/800W-480V50K
• Power Adjustable: 800W / 1000W / 1200W
• Lumens Output: 124,000 / 155,000 / 186,000 LM
• Efficiency: 155 LM/W
• CCT: 5000K
• CRI: >70
• Beam Angle: 30° / 45° / 60° (adjustable)
• Input Voltage: 200–480V AC
• Power Factor: 0.95
• Operating Temperature: -40°C ~ +45°C
• Mounting: Bracket / Pole mounting
• Driver: Inventronics / Moso / Sosen
• Certifications: UL, CUL, DLC, FCC
• Warranty: 5 Years
• Equivalent: 1600–3600W MH/HPS

Applications

• Stadiums & Sports Facilities
• Airports & Shipping Yards
• Parking Lots & Public Squares
• Industrial Facilities & Container Loading Areas
• High-Mast Roadway Lighting
• Railways & Ports & Harbors
