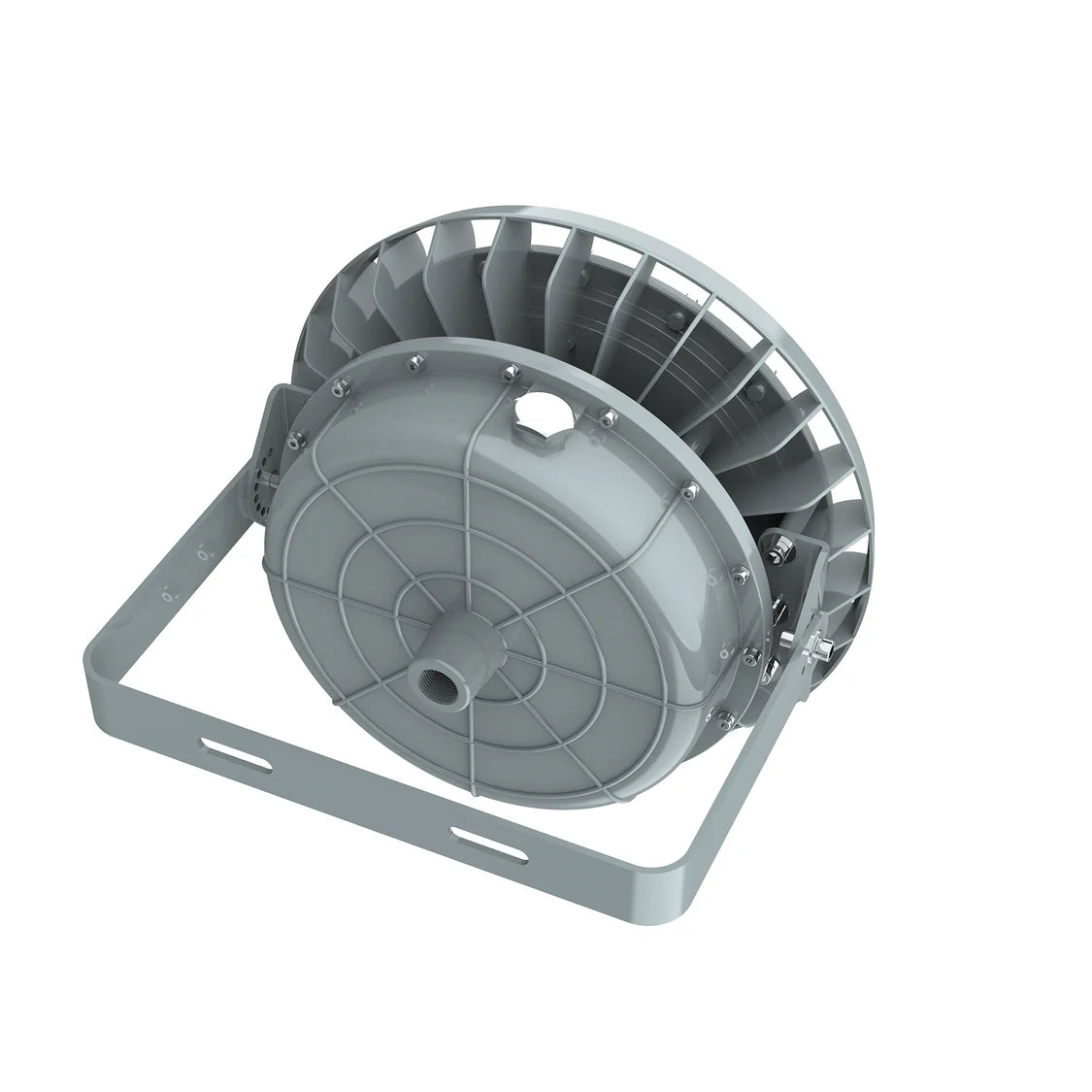

200W Hazardous Location LED Luminaire - Class I Div 2 - 130 LM/W - 5000K - 0-10V Dimming | EX-200W B3D50D120

Ledsion 200W Hazardous Location LED Luminaire – UL 844 certified for Class I Div 2 and Class II/III. 130 LM/W, 26,000 lumens, 0-10V dimming, IP66/IK10. Ideal for petrochemical, offshore, wastewater, and heavy industrial hazardous areas. 5-year warranty.

Features

• Hazardous Location Certified – UL 844 for Class I Div 2, Class II Div 1/2, Class III
• High Efficiency – 130 LM/W with 26,000 lumens output
• 0-10V Dimming – Standard dimming capability
• Rugged Construction – Copper-free aluminum housing with tempered glass, IP66 / IK10 rated
• Marine Rated – UL 1598A Marine Outside Type
• Battery Backup Ready – Compatible with emergency lighting (UL 924)
• Wide Operating Range – -40°F to 131°F (-40°C to 55°C)
• Multiple Mounting Options – Ceiling, Wall, Pole Pendant, Hook Pendant, Stanchion, Trunnion
• Superior Durability – Stainless steel hardware, excellent corrosion resistance

Applications

• Engineered for extreme and hazardous environments:
• Power Plants & Petrochemical Facilities
• Chemical Processing Plants
• Wastewater Treatment Plants
• Offshore Platforms & Marine Environments
• Heavy Industrial Storage & Loading Docks
• Coal Mines, Paper Mills & Metallurgical Plants
• Food & Alcohol Processing Facilities

Mounting Options Ceiling / Wall / Pole Pendant / Hook Pendant / Stanchion / Trunnion

Parameter

Details

Model

EX-200W B3D50D120

Wattage

200W

Light Efficiency

130 LM/W

Lumen Output

26,000 LM

Color Temperature

5000K

Beam Angle

120°

Voltage

120-277V AC

Power Factor

0.95

Dimming

0-10V Dimming

CRI

>72

Protection Rating

IP66 / IK10

Housing Material

Copper-free Aluminum
+ Tempered Glass

Certifications

UL 844, UL 1598, UL
1598A, UL 924, ABS, DLC

Warranty

5 Years
